Description

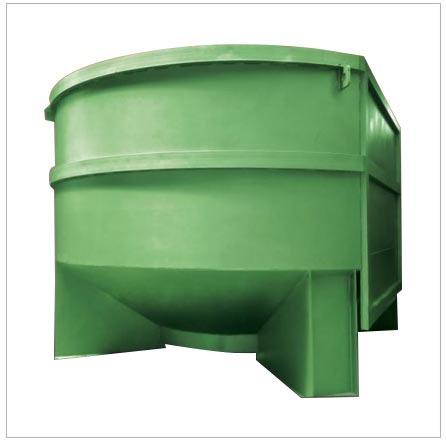

D Type Hydro Pulper operates at low consistency is ideally suited for brown grade applications. .
The D Type Pulper is equipped with D Tub and Rotor. The Pulper can be operated continuously or batch wise. The Pulper Rotor includes pumping vanes and deflaking vanes in order to create strong circulation of the stock and powerful disintegration effect (defibrication) while rotating. For secondary fibre applications the Pulper is operated continuously.
The D-Type Pulper is specially designed to reduce horizontal flow of the stock and reinforce vertical revolution flow hence more throughput. The D Pulper provides more than 20% improvement in capacity comparing to the conventional Pulpers with same horse power and consistency.

Technical Specifications:

Description

MOC : Fully SS 304

Capacity : 500 LPM to 3500 LPM

Operating Consistency : 2 % to 3.5 %

Accessories : Stand, Pneumatic Valve, Reject Collection Chamber, View Glass

Description

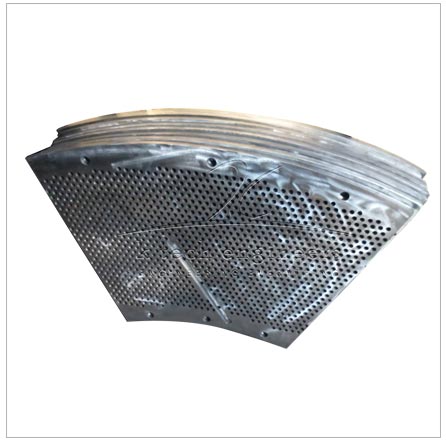

Made Out from SS 304 HR Steel Plate

Accurate Perforation

Inside and Outside Diameter Machined

Customized design as per customer Needs either in Segment or in Full Circle

Cutting Edge Blade Mounting Provision.

Size available from 500 Dia to 1500 Dia

Description

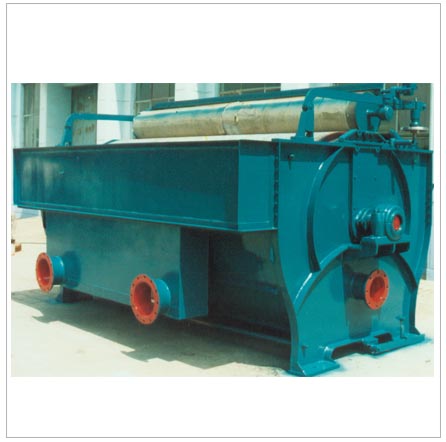

• Made out from M.S. plates, and all water & pulp contacting area are S.S. Cleaded.
• Thickener Mould made out from M.S. or S.S.
• Mould Diameter up to 1.2 mtr to 2 mtr, width up to 2.5 mtr to 4.5 mtr.
• Imput Consistency 1 % and after thickening Output Consistency will be 10 to 12 %
• Improved design of sealing arrangement to minimum fiber loss.

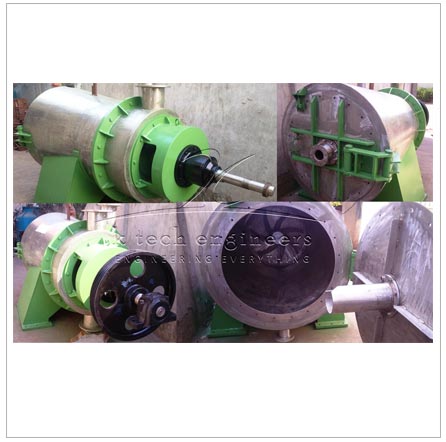

Feature:

• Effective Separation of heavy & light material (Metal Pieces, Pins, Plastic) from Pulp
• Easy maintenance and minium fiber loss.
• The body is made out from mild steel with S.S. cladding Special mode is also available in S.S. 316 Sandwitch plate (S.S. and M.S.) with base frame and stifners in M.S.
• A cyclone effect is formed in the separator by the S.S. Rotor, So heavy partical are carried outward by centrifugal force to the junk trap, The light rejection is further treated in secondary separator or vibrating screen

Technical Specifications:

• Mostly used to process Kraft, Writing & Printing and Duplex Paper
• Size available T-300/T-400/T-600/T-800
• Operating Consistency 1.5% to 3%
• Inlet required pressure 3- 3.5 kg/cm2
• Screen Size 1.8mm to 2.8mm perforation.

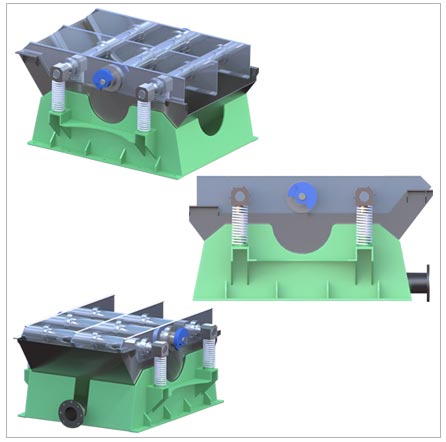

Description

The vibrating screen consists of a M.S. fabricated screening though with S.S. 304 screen plate or Nylon Screen plate having 3mm diameter holes. A shaft supported on two heavy duty bearings in grease lubricated CI bearing housing is fitted to the centre of the screening trough. Two in-balanced weights are provided at both ends of the shaft for attaining vibration. The screening trough is freely carried on 4 nos. Coiled springs which rests on a M.S. fabricated bottom vat. The bottom vat is provided with adjustable partition for maintaining the level of the accepted pulp. A nozzle is provided on the bottom vat for the collection of accepted pulp. A shower pipe is also provided on the screening through for washing off good fibres which adhere to the rejects. The bottom vat is provided with hand holes for cleaning purpose. The Vibrating Screen is driven by a separately mounted electric motor by coupling directly to the screen through a flexible shaft.
